2SD1805 - Silicon NPN Power Transistor

📥 Download Datasheet

Preview of 2SD1805 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SD1805
Manufacturer Inchange Semiconductor
File Size 228.67 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD1805-InchangeSemiconductor.pdf

2SD1805 Product details

Description

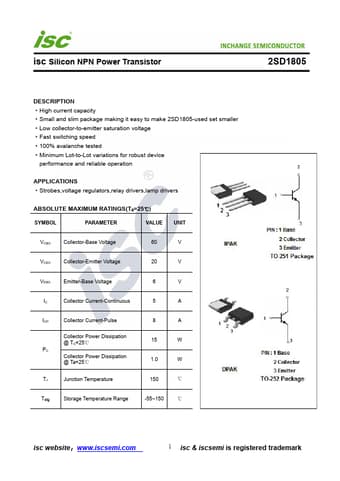

High current capacity Small and slim package making it easy to make 2SD1805-used set smaller Low collector-to-emitter saturation voltage Fast switching speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Strobes,voltage regulators,relay drivers,lamp drivers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltag
