2SC3866 - Silicon NPN Power Transistors

📥 Download Datasheet

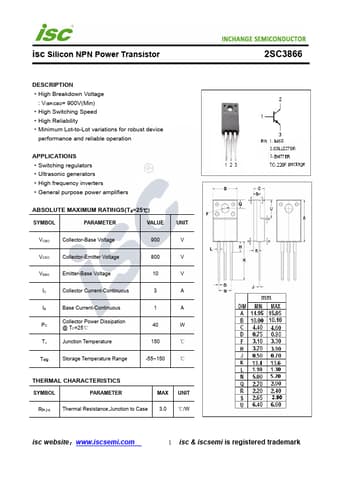

Preview of 2SC3866 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SC3866
Manufacturer Inchange Semiconductor
File Size 193.43 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2SC3866_InchangeSemiconductor.pdf

2SC3866 Product details

Description

High Breakdown Voltage : V(BR)CBO= 900V(Min) High Switching Speed High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators Ultrasonic generators High frequency inverters General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage 900 V 800 V VEBO Emitter-Base Voltage IC C
