2SC3834Y - Silicon NPN Transistor

📥 Download Datasheet

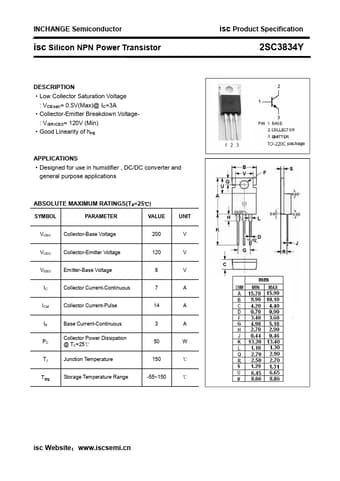

Preview of 2SC3834Y PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC3834Y
Manufacturer Inchange Semiconductor
File Size 587.82 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3834Y-InchangeSemiconductor.pdf

2SC3834Y Product details

Description

Low Collector Saturation Voltage : VCE(sat)= 0.5V(Max)@ IC=3A Collector-Emitter Breakdown Voltage- : V(BR)CEO= 120V (Min) Good Linearity of hFE APPLICATIONS Designed for use in humidifier , DC/DC converter and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 120 V VEBO Emitter-Base Voltage 8V IC Collector Current-Continuous 7 A ICM Collector Current-Pulse
