LAA127P, LAA127 Normally Open OptoMOS Relay

LAA127P Description

INTEGRATED CIRCUITS DIVISION Parameter Load Voltage, AC/DC Load Current On-Resistance (max) Ratings 250 200 10 Units VP mArms / mADC  .
LAA127 is a 250V, 200mA, 10 dual normally open (1-Form-A) Solid State Relay that comprises two independently controlled, optically coupled MOSFET swi.

LAA127P Features

* 3750Vrms Input/Output Isolation
* Low Drive Power Requirements
* Higher Reliability than Electromechanical Relays
* No EMI/RFI Generation
* Small 8-Pin Package
* Flammability Rating UL 94 V-0
* Surface Mount Tape & Reel Versions Available App

LAA127P Applications

* Telecommunications
* Instrumentation
* Multiplexers
* Data Acquisition
* Electronic Switching
* I/O Subsystems
* Meters (Watt-Hour, Water, Gas)
* Medical Equipment-Patient/Equipment Isolation
* Security
* Industrial Co

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LAA127P, LAA127. Please refer to the document for exact specifications by model.

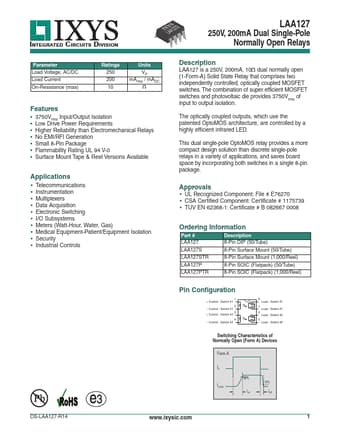

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAA127P, LAA127
Manufacturer
IXYS
File Size
159.44 KB
Datasheet
LAA127-IXYS.pdf
Description
Normally Open OptoMOS Relay
Note
This datasheet PDF includes multiple part numbers: LAA127P, LAA127.
Please refer to the document for exact specifications by model.
