LAA120LS, LAA120L Normally Open Relays

LAA120LS Description

INTEGRATED CIRCUITS DIVISION Parameter Load Voltage, AC/DC Load Current On-Resistance (max) Ratings 250 150 25 Units VP mArms / mADC  .
LAA120L is a dual normally open (1-Form-A) Solid State Relay that has two independently controlled, optically coupled MOSFET switches with an addition.

LAA120LS Features

* Two Current Limiting Relays in One Package
* 3750Vrms Input/Output Isolation
* Low Drive Power Requirements
* Higher Reliability than Electromechanical Relays
* No EMI/RFI Generation
* Small 8-Pin Package
* Flammability Rating UL 94 V-0

LAA120LS Applications

* Telecommunications
* Instrumentation
* Multiplexers
* Data Acquisition
* Electronic Switching
* I/O Subsystems
* Meters (Watt-Hour, Water, Gas)
* Medical Equipment-Patient/Equipment Isolation
* Security
* Industrial Co

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LAA120LS, LAA120L. Please refer to the document for exact specifications by model.

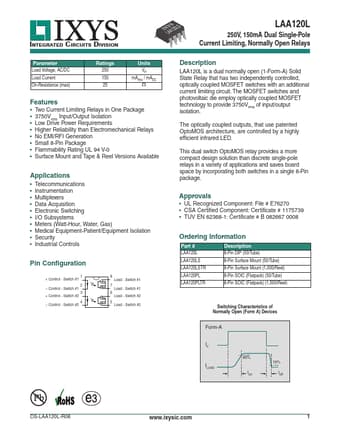

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAA120LS, LAA120L
Manufacturer
IXYS
File Size
158.17 KB
Datasheet
LAA120L-IXYS.pdf
Description
Normally Open Relays
Note
This datasheet PDF includes multiple part numbers: LAA120LS, LAA120L.
Please refer to the document for exact specifications by model.
