LAA125 - DUAL POLE OptoMOS Relays

Description

LAA125 is a 350V, 170mA, 16Ω 2-Form-A relay.

It combines enhanced peak load current capability with low onresistance.

Current limiting version is available (“L” suffix, see specification for variations in performance).

UL Recognized: File Number E76270 CSA Certified: Fi

Features

  • Small 8 Pin DIP Package.
  • Low Drive Power Requirements (TTL/CMOS Compatible).
  • No Moving Parts.
  • High Reliability.
  • Arc-Free With No Snubbing Circuits.
  • 3750VRMS Input/Output Isolation.
  • FCC Compatible.
  • VDE Compatible.
  • No EMI/RFI Generation.
  • Machine Insertable, Wave Solderable.
  • Surface Mount and Tape & Reel Versions Available Ordering Information Part # LAA125 LAA125P LAA125PTR LAA125S LAA125STR Descri.

📥 Download Datasheet

Datasheet Details

Part number LAA125
Manufacturer Clare
File Size 237.00 KB
Description DUAL POLE OptoMOS Relays
Datasheet download datasheet LAA125 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LAA125 Normally Open OptoMOS Relay IXYS
LAA120 Normally Open OptoMOS Relay IXYS
LAA120L Normally Open Relays IXYS
LAA120LS Normally Open Relays IXYS
LAA120PL Normally Open Relays IXYS

Other Datasheets by Clare

Part Number Description
LAA120 DUAL POLE OptoMOS Relay
LAA120L DUAL POLE OptoMOS Relay
LAA126 Dual Pole OptoMOS Relay
LAA127 DUAL POLE OptoMOS Relay
LAA127L DUAL POLE OptoMOS Relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

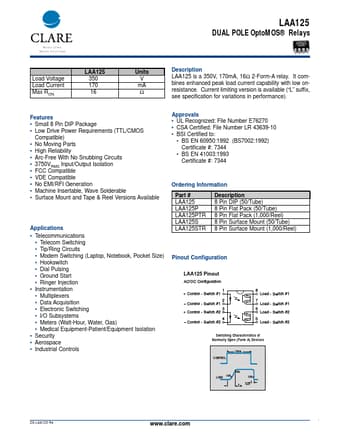

LAA125 DUAL POLE OptoMOS® Relays Load Voltage Load Current Max RON LAA125 350 170 16 Units V mA Ω Description LAA125 is a 350V, 170mA, 16Ω 2-Form-A relay. It combines enhanced peak load current capability with low onresistance. Current limiting version is available (“L” suffix, see specification for variations in performance).
