IXYK110N120B4 Datasheet (IXYS) - Extreme Light Punch Through IGBT

IXYK110N120B4, Extreme Light Punch Through IGBT

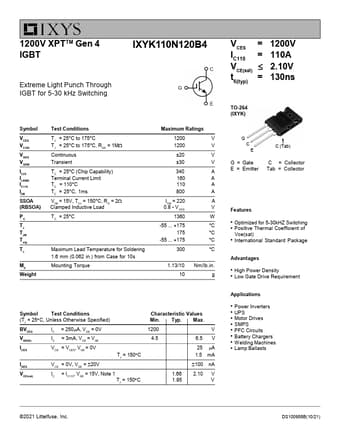

1200V XPTTM Gen 4 IGBT IXYK110N120B4 Extreme Light Punch Through IGBT for 5-30 kHz Switching Symbol V CES V CGR VGES V GEM IC25 I LRMS I C110 ICM SSOA (RBSOA) PC T J TJM Tstg TL Md Weight Test Conditions T = 25°C to 175°C J T J = 25°C to 175°C, R GE = 1M Continuous Transient TC = 25°C (Chip Capability) Terminal Current Limit T = 110°C C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 2 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering 1.6 mm (0.062 in.) from

IXYK110N120B4 Features

* Optimized for 5-30kHZ Switching

* Positive Thermal Coefficient of Vce(sat)

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* PFC Circuits

* Battery C
