IXYH12N250CHV, IXYA12N250CHV, High Voltage IGBT

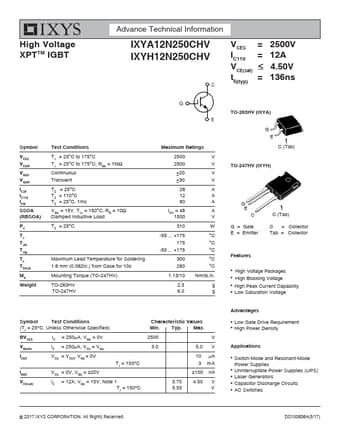

High Voltage XPTTM IGBT Advance Technical Information IXYA12N250CHV IXYH12N250CHV VCES = 2500V IC110 = 12A V CE(sat) 4.50V tfi(typ) = 136ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 10 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case f
IXYH12N250CHV Features
* High Voltage Packages
* High Blocking Voltage
* High Peak Current Capability
* Low Saturation Voltage Advantages
* Low Gate Drive Requirement
* High Power Density Applications
* Switch-Mode and Resonant-Mode Power Supplies
* Uninterruptible Power Supplies (UPS)
