IXYA8N250CHV High Voltage IGBT

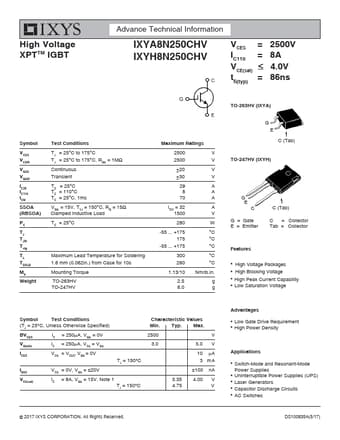

High Voltage XPTTM IGBT Advance Technical Information IXYA8N250CHV IXYH8N250CHV VCES = 2500V IC110 = 8A V CE(sat)  4.0V tfi(typ) = 86ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 15 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10.

IXYA8N250CHV Features

* High Voltage Packages

* High Blocking Voltage

* High Peak Current Capability

* Low Saturation Voltage Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVCES IC = 250A, VGE = 0V VGE(th) IC = 250A, VCE = VGE ICES VCE = VCES, VGE = 0V TJ = 150C IGES VCE =
