IXTP8N65X2, IXTY8N65X2 Power MOSFET

IXTP8N65X2 Description

Preliminary Technical Information X2-Class Power MOSFET N-Channel Enhancement Mode IXTY8N65X2 IXTA8N65X2 IXTP8N65X2 VDSS = ID25 = RDS(on) 650V 8A.

IXTP8N65X2 Features

* International Standard Packages
* Low RDS(ON) and QG
* Avalanche Rated
* Low Package Inductance Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVDSS VGS = 0V, ID = 250μA VGS(th) VDS = VGS, ID = 250μA IGSS VGS = 30V, VDS = 0V IDSS VDS = VDSS, VGS = 0V TJ =

IXTP8N65X2 Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* PFC Circuits
* AC and DC Motor Drives
* Robotics and Servo Controls © 2015 IXYS CORPORATION, All Rights Reserved DS100649A(6/15) IXTY8N65X2 Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) gf

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXTP8N65X2, IXTY8N65X2. Please refer to the document for exact specifications by model.

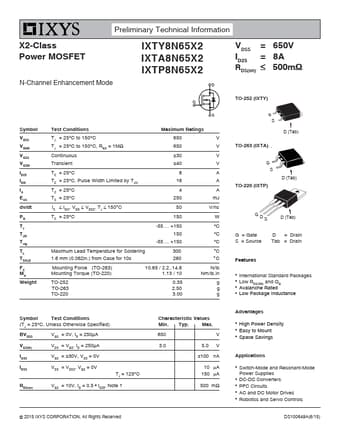

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXTP8N65X2, IXTY8N65X2
Manufacturer
IXYS
File Size
241.42 KB
Datasheet
IXTY8N65X2-IXYS.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IXTP8N65X2, IXTY8N65X2.
Please refer to the document for exact specifications by model.
