IXGT20N120B - High Voltage IGBT

IXYS

📥 Download Datasheet

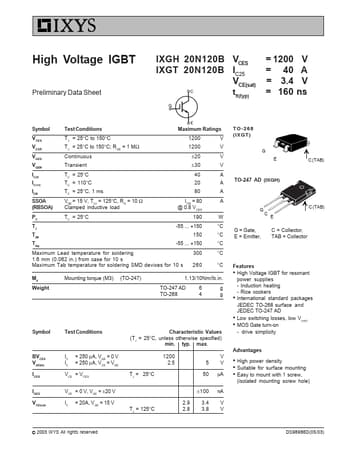

IXGT20N120B Datasheet Preview — Preview of IXGT20N120B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IXGT20N120B
Manufacturer	IXYS
File Size	627.67 KB
Description	High Voltage IGBT
Datasheet	IXGT20N120B_IXYS.pdf

IXGT20N120B Product details

Features

z High Voltage IGBT for resonant power supplies - Induction heating - Rice cookers z International standard packages JEDEC TO-268 surface and JEDEC TO-247 AD z Low switching losses, low V(sat) z MOS Gate turn-on - drive simplicity Advantages BVCES VGE(th) ICES IGES VCE(sat) IC IC = 250 µA, VGE = 0 V = 250 µA, VCE = VGE z z z VCE = VCES VCE = 0 V, VGE = ±20 V IC = 20A, VGE = 15 V High power density Suitable for surface mounting Easy to mount with 1 screw, (isolated mounting screw hole) © 2.
