IXGF36N300 - High Voltage IGBT

Features

  • 1 = Gate 2 = Emitter 5 = Collector 1 2 5 Isolated Tab 1.6 mm (0.062 in. ) from Case for 10s Plastic Body for 10s Mounting Force 50/60Hz, 1 minute 300 260 20..120/4.5..27 4000 5 Symbol Test Conditions (TJ = 25°C, Unless Otherwise Specified) BVCES VGE(th) ICES IGES VCE(sat) IC IC = 250μA, VGE = 0V = 250μA, VCE = VGE Characteristic Values Min. Typ. Max. 3000 3.0 5.0 V V Advantages High Power Density Easy to Mount VCE = 0.8.
  • VCES, VGE = 0V Note 2 ,TJ = 125°C VCE = 0V, VGE = ±20V IC IC.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IXGF25N300 High Voltage IGBT IXYS Corporation
IXGA10N60 High speed IGBT IXYS Corporation
IXGA10N60A High speed IGBT IXYS Corporation
IXGA12N100 IGBT IXYS Corporation
IXGA12N100A IGBT IXYS Corporation

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXGF30N400 High Voltage IGBT
IXGF32N170 High Voltage IGBT
IXGF20N250 High Voltage IGBT
IXGF20N300 High Voltage IGBT
IXGF25N250 High Voltage IGBT

Full PDF Text Transcription

Click to expand full text

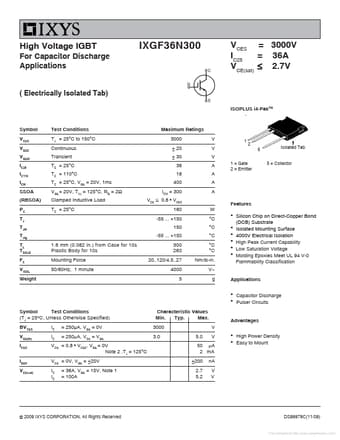

High Voltage IGBT For Capacitor Discharge Applications ( Electrically Isolated Tab) IXGF36N300 VCES = 3000V = 36A IC25 VCE(sat) ≤ 2.7V ISOPLUS i4-PakTM Symbol VCES VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD FC VISOL Weight Test Conditions TJ = 25°C to 150°C Continuous Transient TC = 25°C TC = 110°C TC = 25°C, VGE = 20V, 1ms VGE = 20V, TVJ = 125°C, RG = 2Ω Clamped Inductive Load TC = 25°C Maximum Ratings 3000 ± 20 ± 30 36 18 400 ICM = 300 VCE ≤ 0.8 • VCES 160 -55 ... +150 150 -55 ... +150 W °C °C °C °C °C Nm/lb-in.
