IXFQ60N60X Power MOSFET

IXFQ60N60X Description

X-Class HiPerFETTM Power MOSFET Preliminary Technical Information IXFQ60N60X IXFH60N60X VDSS = ID25 = RDS(on) 600V 60A 55m N-Channel Enhancemen.

IXFQ60N60X Features

* International Standard Packages
* Low RDS(ON) and QG
* Avalanche Rated
* Low Package Inductance Advantages
* High Power Density
* Easy to Mount

IXFQ60N60X Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* PFC Circuits
* AC and DC Motor Drives
* Robotics and Servo Controls © 2015 IXYS CORPORATION, All Rights Reserved DS100656A(5/15) Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) gfs VDS = 10V,

📥 Download Datasheet

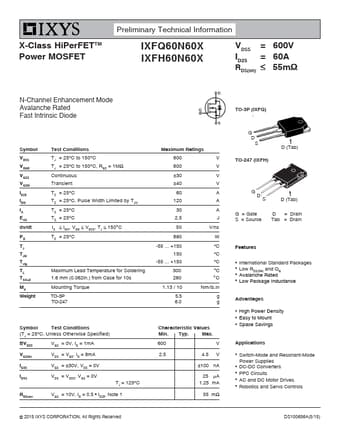

Preview of IXFQ60N60X PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXFQ60N60X
Manufacturer
IXYS
File Size
167.23 KB
Datasheet
IXFQ60N60X-IXYS.pdf
Description
Power MOSFET
