IXFQ50N60X, IXFT50N60X Power MOSFET

IXFQ50N60X Description

X-Class HiPerFETTM Power MOSFET Preliminary Technical Information IXFT50N60X IXFQ50N60X IXFH50N60X VDSS = ID25 = RDS(on) 600V 50A 73m N-Channel.

IXFQ50N60X Features

* International Standard Packages
* Low RDS(ON) and QG
* Avalanche Rated
* Low Package Inductance Advantages
* High Power Density
* Easy to Mount

IXFQ50N60X Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* PFC Circuits
* AC and DC Motor Drives
* Robotics and Servo Controls DS100657A(5/15) Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) gfs VDS = 10V, ID = 0.5
* ID25, Note 1 RGi Gate Inpu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXFQ50N60X, IXFT50N60X. Please refer to the document for exact specifications by model.

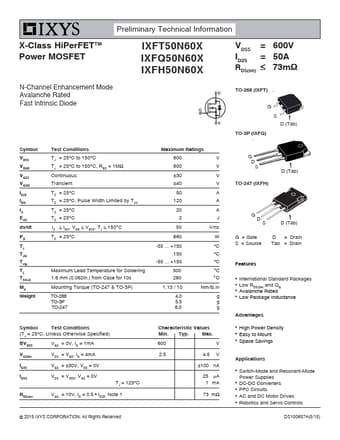

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXFQ50N60X, IXFT50N60X
Manufacturer
IXYS
File Size
185.51 KB
Datasheet
IXFT50N60X-IXYS.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IXFQ50N60X, IXFT50N60X.
Please refer to the document for exact specifications by model.
