IXFB70N100X - Power MOSFET

Features

  • Low QG.
  • Avalanche Rated.
  • Low Package Inductance Advantages.
  • High Power Density.
  • Easy to Mount.
  • Space Savings.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IXFB70N60Q2 Power MOSFET IXYS Corporation
IXFB100N50P Power MOSFET IXYS Corporation
IXFB100N50Q3 HiperFET Power MOSFET Q3-Class IXYS Corporation
IXFB110N60P3 Power MOSFET IXYS Corporation
IXFB120N50P2 PolarP2 HiPerFET Power MOSFET IXYS Corporation

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXFB72N55Q2 Power MOSFET
IXFB150N65X2 Power MOSFET
IXFB44N100P N-Channel Power MOSFET
IXFB90N85X Power MOSFET
IXFA12N65X2 Power MOSFET

Full PDF Text Transcription

Click to expand full text

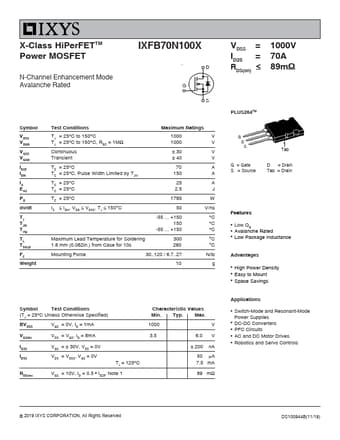

X-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXFB70N100X D G S Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD dv/dt TJ TJM Tstg TL TSOLD FC Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 1000 V 1000 V  30 V  40 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C 70 150 25 2.5 1785 50 -55 ... +150 150 -55 ... +150 A A A J W V/ns C C C Maximum Lead Temperature for Soldering 300 °C 1.6 mm (0.062in.) from Case for 10s 260 °C Mounting Force 30..120 / 6.7..
