IXFR180N085, Power MOSFET

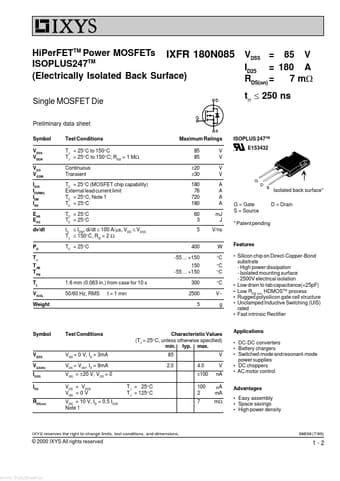

HiPerFETTM Power MOSFETs IXFR 180N085 ISOPLUS247TM (Electrically Isolated Back Surface) Single MOSFET Die Preliminary data sheet Symbol VDSS VDGR VGS VGSM ID25 ID(RMS) IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL VISOL Weight 1.6 mm (0.063 in.) from case for 10 s 50/60 Hz, RMS t = 1 min Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MW Continuous Transient TC = 25°C (MOSFET chip capability) External lead current limit TC = 25°C, Note 1 TC = 25°C TC = 25°C TC = 25°C IS £ IDM, di/dt £ 1

IXFR180N085 Features

* Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation

* Low drain to tab capacitance(
