IS62WV5128EBLL, IS62WV5128EALL ULTRA LOW POWER CMOS STATIC RAM

IS62WV5128EBLL Description

IS62WV5128EALL/EBLL/ECLL IS65WV5128EBLL/ECLL 512Kx8 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM APRIL 2017 KEY .
The ISSI IS62/65WV5128EALL/BLL/CLL are highspeed, 4M bit static RAMs organized as 512K words by 8 bits.

IS62WV5128EBLL Features

* High-speed access time: 35ns, 45ns, 55ns
* CMOS low power operation
* Operating Current: 22 mA (max) at 85°C
* CMOS Standby Current: 3.7uA (typ) at 25°C
* TTL compatible interface levels
* Single power supply
* 1.65V-2.2V VDD (IS62/65WV5128EALL)
* 2.2

IS62WV5128EBLL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS62WV5128EBLL, IS62WV5128EALL. Please refer to the document for exact specifications by model.

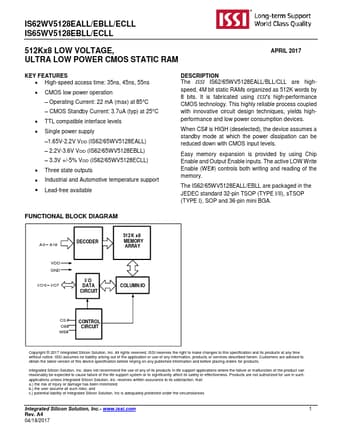

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62WV5128EBLL, IS62WV5128EALL
Manufacturer
ISSI
File Size
804.55 KB
Datasheet
IS62WV5128EALL-ISSI.pdf
Description
ULTRA LOW POWER CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS62WV5128EBLL, IS62WV5128EALL.
Please refer to the document for exact specifications by model.
