IS62WV51216GBLL, IS62WV51216GALL ULTRA LOW POWER CMOS STATIC RAM

IS62WV51216GBLL Description

IS62WV51216GALL/BLL IS65WV51216GALL/BLL 512Kx16 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM DECEMBER 2021 KEY .
The ISSI IS62/65WV51216GALL/BLL are high-speed, low power, 8M bit static RAMs organized as 512K words by 16 bits.

IS62WV51216GBLL Features

* High-speed access time: 45ns, 55ns
* CMOS low power operation
* Operating Current: 35mA (max. )
* CMOS standby Current: 5.5uA (typ. )
* TTL compatible interface levels
* Single power supply
* 1.65V-2.2V VDD (IS62/65WV51216GALL)
* 2.2V-3.

IS62WV51216GBLL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS62WV51216GBLL, IS62WV51216GALL. Please refer to the document for exact specifications by model.

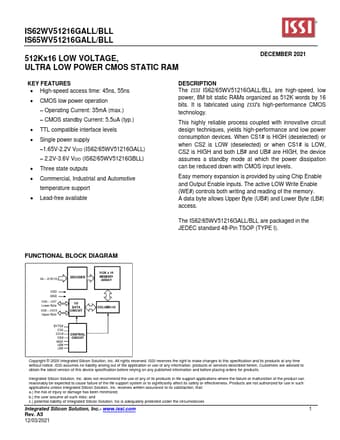

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62WV51216GBLL, IS62WV51216GALL
Manufacturer
ISSI
File Size
460.48 KB
Datasheet
IS62WV51216GALL-ISSI.pdf
Description
ULTRA LOW POWER CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS62WV51216GBLL, IS62WV51216GALL.
Please refer to the document for exact specifications by model.
