IS62WV12816ALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

📥 Download Datasheet

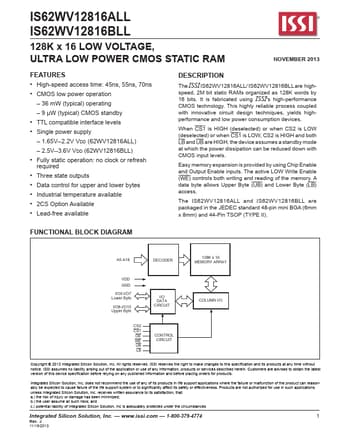

IS62WV12816ALL Datasheet Preview — Preview of IS62WV12816ALL PDF

Datasheet Details

Part number	IS62WV12816ALL
Manufacturer	ISSI
File Size	504.56 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV12816ALL-ISSI.pdf

IS62WV12816ALL Product details

Description

The ISSI IS62WV12816ALL/ IS62WV12816BLLare high- speed, 2M bit static RAMs organized as 128K words by 16 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When CS1 is HIGH (deselected) or when CS2 is LOW (deselected) or

Features

High-speed access time: 45ns, 55ns, 70ns.
CMOS low power operation.
36 mW (typical) operating.
9 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply.
1.65V--2.2V Vdd (62WV12816ALL).
2.5V--3.6V Vdd (62WV12816BLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Industrial temperat.
