IS61WV25616BLS, IS61WV25616ALL 256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

IS61WV25616BLS Description

IS61WV25616ALL/ALS IS61WV25616BLL/BLS IS64WV25616BLL/BLS 256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM JULY 2022 .
The ISSI IS61WV25616Axx/Bxx and IS64WV25616Bxx are high-speed, 4,194,304-bit static RAMs organized as 262,144 words by 16 bits.

IS61WV25616BLS Features

* HIGH SPEED: (IS61/64WV25616ALL/BLL)
* High-speed access time: 8, 10, 20 ns
* Low Active Power: 85 mW (typical)
* Low Standby Power: 7 mW (typical) CMOS standby LOW POWER: (IS61/64WV25616ALS/BLS)
* High-speed access time: 25, 35, 45 ns
* Low Active Power: 35 mW

IS61WV25616BLS Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS61WV25616BLS, IS61WV25616ALL. Please refer to the document for exact specifications by model.

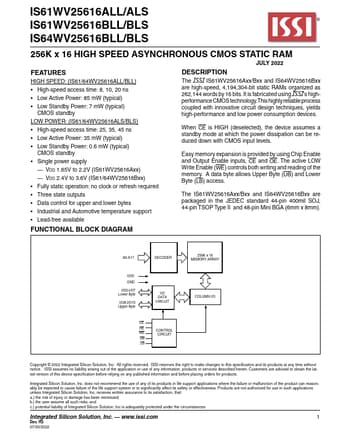

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS61WV25616BLS, IS61WV25616ALL
Manufacturer
ISSI
File Size
333.17 KB
Datasheet
IS61WV25616ALL_ISSI.pdf
Description
256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS61WV25616BLS, IS61WV25616ALL.
Please refer to the document for exact specifications by model.
