IS61VF102418A - (IS61xFxxxxxA) Synchronous Flow-through Static RAM

Download the IS61VF102418A datasheet PDF. This datasheet also covers the IS61LF25672A variant, as both devices belong to the same (is61xfxxxxxa) synchronous flow-through static ram family and are provided as variant models within a single manufacturer datasheet.

Description

IS61LF/VF102418A are high-speed, low-power synchronous static RAMs designed to provide burstable, highperformance memory for communication and networking applications.

The IS61LF/VF25672A is organized as 262,144 words by 72 bits.

Features

  • Internal self-timed write cycle.
  • Individual Byte Write Control and Global Write.
  • Clock controlled, registered address, data and control.
  • Burst sequence control using MODE input.
  • Three chip enable option for simple depth expansion and address pipelining.
  • Common data inputs and data outputs.
  • Auto Power-down during deselect.
  • Single cycle deselect.
  • Snooze MODE for reduced-power standby.
  • JTAG Boundary Scan for.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS61LF25672A_ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS61VF10018 512K x 32 Synchronous Flow-through Static RAM Integrated Silicon Solution
IS61VF25636A 256K x 36-512K x 18 9Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM Integrated Silicon Solution
IS61VF51218A 256K x 36-512K x 18 9Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM Integrated Silicon Solution
IS61VF51232 512K x 32 Synchronous Flow-through Static RAM Integrated Silicon Solution
IS61VPD102418A 512K x 36 - 1024K x 18 18Mb SYNCHRONOUS PIPELINED DOUBLE CYCLE DESELECT STATIC RAM Integrated Silicon Solution

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS61VF12832EC SYNCHRONOUS FLOW-THROUGH SRAM
IS61VF12836A (IS6xxFxxxxxA) Synchronous Flow-through Static RAM
IS61VF12836EC SYNCHRONOUS FLOW-THROUGH SRAM
IS61VF204836B 2M x 36 / 4M x 18 / 72 Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM
IS61VF25618A (IS6xxFxxxxxA) Synchronous Flow-through Static RAM

Full PDF Text Transcription

Click to expand full text

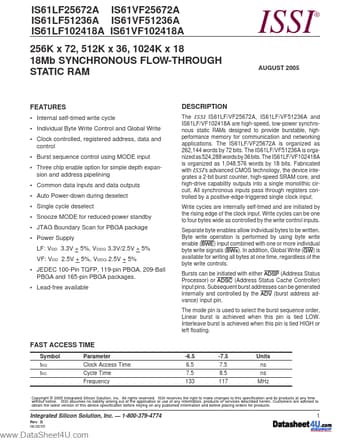

( DataSheet : www.DataSheet4U.com ) IS61LF25672A IS61VF25672A IS61LF51236A IS61VF51236A IS61LF102418A IS61VF102418A 256K x 72, 512K x 36, 1024K x 18 18Mb SYNCHRONOUS FLOW-THROUGH STATIC RAM ISSI AUGUST 2005 ® FEATURES • Internal self-timed write cycle • Individual Byte Write Control and Global Write • Clock controlled, registered address, data and control • Burst sequence control using MODE input • Three chip enable option for simple depth expansion and address pipelining • Common data inputs and data outputs • Auto Power-down during deselect • Single cycle deselect • Snooze MODE for reduced-power standby • JTAG Boundary Scan for PBGA package • Power Supply LF: VDD 3.3V + 5%, VDDQ 3.3V/2.5V + 5% VF: VDD 2.5V + 5%, VDDQ 2.
