IS43TR81024BL - 8Gb DDR3 SDRAM

Download the IS43TR81024BL datasheet PDF. This datasheet also covers the IS46TR16512B variant, as both devices belong to the same 8gb ddr3 sdram family and are provided as variant models within a single manufacturer datasheet.

Description

RAS#.

CAS#.

Features

  • Standard Voltage: VDD and VDDQ = 1.5V ± 0.075V.
  • Low Voltage (L): VDD and VDDQ = 1.35V + 0.1V, -0.067V - Backward compatible to 1.5V.
  • High speed data transfer rates with system frequency up to 933 MHz.
  • 8 internal banks for concurrent operation.
  • 8n-Bit pre-fetch architecture.
  • Programmable CAS Latency.
  • Programmable Additive Latency: 0, CL-1,CL-2.
  • Programmable CAS WRITE latency (CWL) based on tCK.
  • Programmable Burst Le.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS46TR16512B-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS431 (IS431 / IS432) TOTEM POLE OUTPUT TYPE OPIC LIGHT DETECTOR Sharp Electrionic Components
IS432 (IS431 / IS432) TOTEM POLE OUTPUT TYPE OPIC LIGHT DETECTOR Sharp Electrionic Components
IS435 BUILT IN AMP TYPE LIGHT DETECTOR Sharp Electrionic Components
IS436 BUILT IN AMP TYPE LIGHT DETECTOR Sharp Electrionic Components
IS437 (IS437 / IS438) TYPE OPIC LIGHT DETECTOR Sharp Electrionic Components

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS43TR81024B 8Gb DDR3 SDRAM
IS43TR81280B 1Gb DDR3 SDRAM
IS43TR81280BL 1Gb DDR3 SDRAM
IS43TR81280ED 1Gb DDR3 SDRAM
IS43TR82560B 2Gb DDR3 SDRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

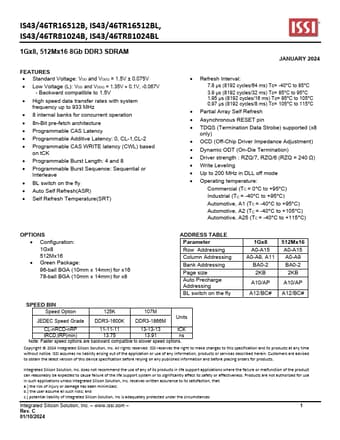

IS43/46TR16512B, IS43/46TR16512BL, IS43/46TR81024B, IS43/46TR81024BL 1Gx8, 512Mx16 8Gb DDR3 SDRAM FEATURES • Standard Voltage: VDD and VDDQ = 1.5V ± 0.075V • Low Voltage (L): VDD and VDDQ = 1.35V + 0.1V, -0.067V - Backward compatible to 1.5V • High speed data transfer rates with system frequency up to 933 MHz • 8 internal banks for concurrent operation • 8n-Bit pre-fetch architecture • Programmable CAS Latency • Programmable Additive Latency: 0, CL-1,CL-2 • Programmable CAS WRITE latency (CWL) based on tCK • Programmable Burst Length: 4 and 8 • Programmable Burst Sequence: Sequential or Interleave • BL switch on the fly • Auto Self Refresh(ASR) • Self Refresh Temperature(SRT) JANUARY 2024 • Refresh Interval: 7.8 µs (8192 cycles/64 ms) Tc= -40°C to 85°C 3.
