IS42S32200L - 64-MBIT SYNCHRONOUS DYNAMIC RAM

Name: IS42S32200L
SKU: IS42S32200L-1527486

ISSI

The IS42S32200L by ISSI is a 64-MBIT SYNCHRONOUS DYNAMIC RAM. Below is the official datasheet preview.

Datasheet Details

Part number	IS42S32200L
Manufacturer	ISSI
File Size	1.03 MB
Description	64-MBIT SYNCHRONOUS DYNAMIC RAM
Datasheet	IS42S32200L-ISSI.pdf

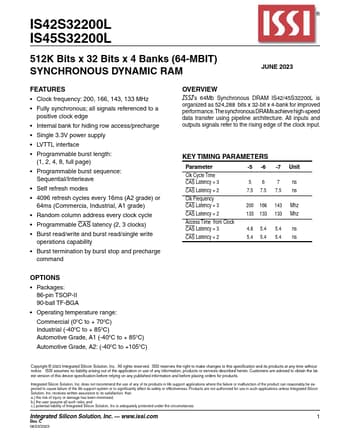

Additional preview pages of the IS42S32200L datasheet.

The 64Mb SDRAM is a high speed CMOS, dynamic random-access memory designed to operate in 3.3V memory systems containing 67,108,864 bits.

Clock frequency: 200, 166, 143, 133 MHz.
Fully synchronous; all signals referenced to a positive clock edge.
Internal bank for hiding row access/precharge.
Single 3.3V power supply.
LVTTL interface.
Programmable burst length: (1, 2, 4, 8, full page).
Programmable burst sequence: Sequential/Interleave.
Self refresh modes.
4096 refresh cycles every 16ms (A2 grade) or 64ms (Commercia, Industrial, A1 grade).
R.
