ISP321-4X, ISP321-1 - (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

ISOCOM COMPONENTS

📥 Download Datasheet

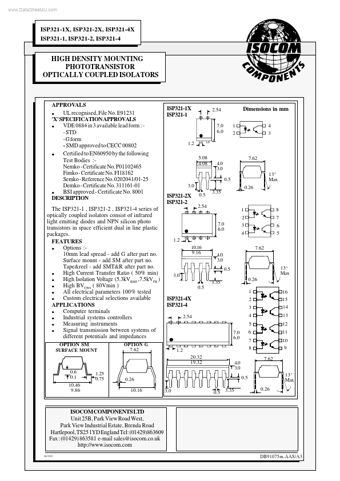

ISP321-4X Datasheet Preview — This datasheet PDF includes multiple part numbers: ISP321-4X, ISP321-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ISP321-4X, ISP321-1
Manufacturer	ISOCOM COMPONENTS
File Size	110.74 KB
Description	(ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
Datasheet	ISP321-1_ISOCOMCOMPONENTS.pdf
Note	This datasheet PDF includes multiple part numbers: ISP321-4X, ISP321-1. Please refer to the document for exact specifications by model.

ISP321-4X Product details

Description

The ISP321-1 , ISP321-2 , ISP321-4 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages.

Features

l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio ( 50% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO ( 80Vmin ) l All electrical parameters 100% tested l Custom electrical selections available.
