AUIRGU4045D, AUIRGR4045D INSULATED GATE BIPOLAR TRANSISTOR

AUIRGU4045D Description

AUTOMOTIVE GRADE INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE .

AUIRGU4045D Features

* Low VCE (on) Trench IGBT Technology Low Switching Losses Maximum Junction temperature 175 °C 5µs SCSOA Square RBSOA 100% of the parts tested for ILM Positive VCE (on) Temperature Coefficien

AUIRGU4045D Applications

* Suitable for a Wide Range of Switching Frequencies due to Low VCE (ON) and Low Switching Losses
* Rugged Transient Performance for Increased Reliability
* Excellent Current Sharing in Parallel Operation
* Low EMI D-Pak AUIRGR4045D G I-Pak AUIRGU4045D G C E G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AUIRGU4045D, AUIRGR4045D. Please refer to the document for exact specifications by model.

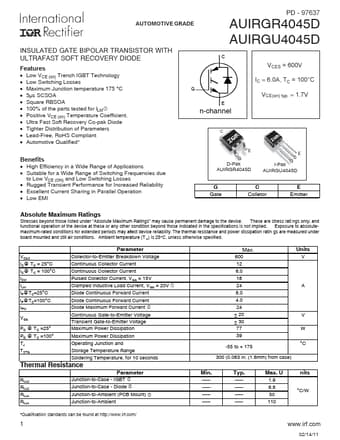

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AUIRGU4045D, AUIRGR4045D
Manufacturer
IRF
File Size
576.52 KB
Datasheet
AUIRGR4045D-IRF.pdf
Description
INSULATED GATE BIPOLAR TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: AUIRGU4045D, AUIRGR4045D.
Please refer to the document for exact specifications by model.
