IXFQ72N20X3 N-Channel MOSFET

INCHANGE

IXFQ72N20X3 Description

isc N-Channel MOSFET Transistor *.

IXFQ72N20X3 Features

* Drain Source Voltage- : VDSS= 200V(Min)
* Static Drain-Source On-Resistance : RDS(on) ≤20mΩ@VGS= 10V
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IXFQ72N20X3 Applications

* Easy to Mount
* Space Savings
* High Power Density
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 200 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 72 A IDM Drain Current-Single Plused 130 A PD To

📥 Download Datasheet

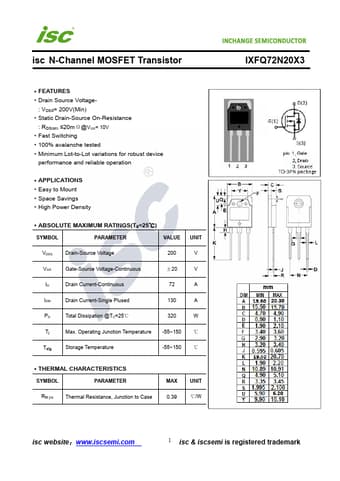

IXFQ72N20X3 Datasheet Preview — Preview of IXFQ72N20X3 PDF

Datasheet Details

Part number: IXFQ72N20X3
Manufacturer: INCHANGE
File Size: 253.19 KB
Datasheet: IXFQ72N20X3-INCHANGE.pdf
Description: N-Channel MOSFET
