IRL2505S N-Channel MOSFET

IRL2505S Description

isc N-Channel MOSFET Transistor *.

IRL2505S Features

* With TO-263( D2PAK ) packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRL2505S Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 55 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous;Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±16 104 74 360 PD Total Dissipation 200 Tj Operat

📥 Download Datasheet

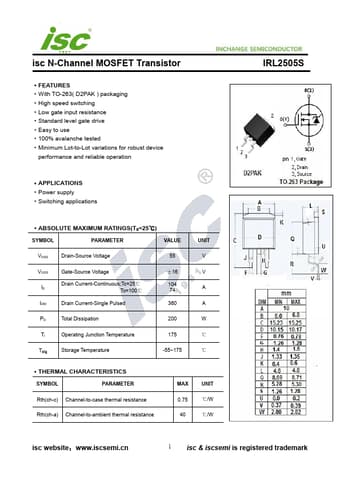

Preview of IRL2505S PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRL2505S
Manufacturer
INCHANGE
File Size
247.29 KB
Datasheet
IRL2505S-INCHANGE.pdf
Description
N-Channel MOSFET
