IPD60R180P7S - N-Channel MOSFET

Features

  • br>.
  • Static drain-source on-resistance: RDS(on)≤0.18Ω.
  • Enhancement mode:.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IPD60R180P7S MOSFET Infineon
IPD60R180P7 MOSFET Infineon
IPD60R180C7 600V MOSFET Infineon
IPD60R180CM8 MOSFET Infineon
IPD60R170CFD7 MOSFET Infineon

Other Datasheets by Inchange Semiconductor

Part Number Description
IPD60R180C7 N-Channel MOSFET
IPD60R170CFD7 N-Channel MOSFET
IPD60R1K0CE N-Channel MOSFET
IPD60R1K4C6 N-Channel MOSFET
IPD60R1K5CE N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

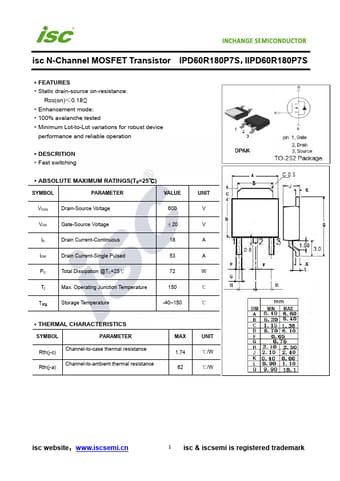

isc N-Channel MOSFET Transistor IPD60R180P7S，IIPD60R180P7S ·FEATURES ·Static drain-source on-resistance: RDS(on)≤0.18Ω ·Enhancement mode: ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·DESCRITION ·Fast switching ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 18 IDM Drain Current-Single Pulsed 53 PD Total Dissipation @TC=25℃ 72 Tj Max. Operating Junction Temperature 150 Tstg Storage Temperature -40~150 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(j-c) Channel-to-case thermal resistance Rth(j-a) Channel-to-ambient thermal resistance MAX 1.74 62 UNIT ℃/W ℃/W isc website：www.iscsemi.
