DSEP12-12AZ - Ultra fast Rectifier

Features

  • With TO-263 packaging.
  • Metal silicon junction, majority carrier conduction.
  • Low power loss, high efficiency.
  • Guardring for overvoltage protection.
  • High surge capability.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DSEP12-12AZ High Performance Fast Recovery Diode IXYS
DSEP12-12A High Performance Fast Recovery Diode IXYS
DSEP12-12B Epitaxial Diode IXYS
DSEP12-12BZ High Performance Fast Recovery Diode IXYS
DSEP130-06A Epitaxial Diode IXYS Corporation

Other Datasheets by Inchange Semiconductor

Part Number Description
DSEP12-12A Ultrafast Rectifier
DSEP15-06AS TO-220 Ultrafast Rectifier
DSEP15-06AS TO-263 Ultra fast Rectifier
DSEP29-06AS Ultrafast Rectifier
DSEP29-12A Ultra fast Rectifier

Full PDF Text Transcription

Click to expand full text

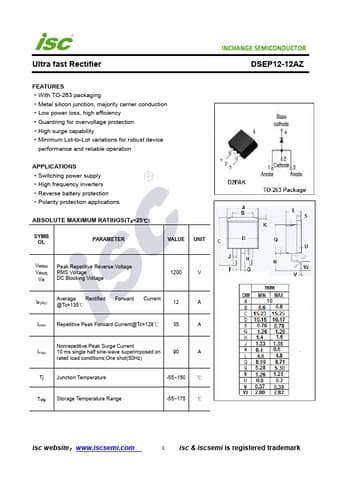

Ultra fast Rectifier FEATURES ·With TO-263 packaging ·Metal silicon junction, majority carrier conduction ·Low power loss, high efficiency ·Guardring for overvoltage protection ·High surge capability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching power supply ·High frequency inverters ·Reverse battery protection ·Polarity protection applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMB OL PARAMETER VALUE UNIT VRRM VRMS VR Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage 1200 V IF(AV) Average Rectified @Tc=135℃ Forward Current 12 A IFRM Repetitive Peak Forward Current@Tc=128℃ 35 A Nonrepetitive Peak Surge Current IFSM 10 ms single half sine-wave superimposed on 90 A rated load conditions;One shot
