BU508AW NPN Transistor

BU508AW Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor BU508AW .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 700V (Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device perf.

BU508AW Applications

* Designed for use in horizontal deflection circuits of color TV receivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Contin

📥 Download Datasheet

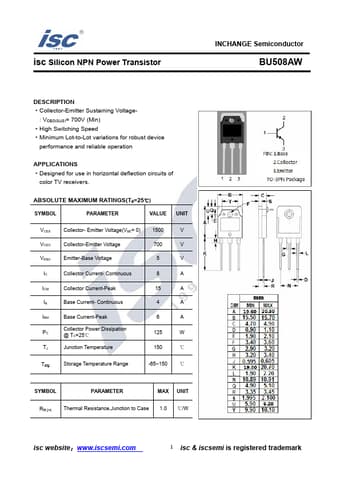

Preview of BU508AW PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU508AW
Manufacturer
INCHANGE
File Size
210.22 KB
Datasheet
BU508AW-INCHANGE.pdf
Description
NPN Transistor
