BU508A-M Silicon NPN Power Transistor

BU508A-M Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V (Min). High Power Dissipation- : PD= 100W@TC= 25℃ APPLICATIONS. Designed for hori.

BU508A-M Applications

* Designed for horizontal output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6V IC Collector Current- Continuous 5A ICM Collector Current-P

📥 Download Datasheet

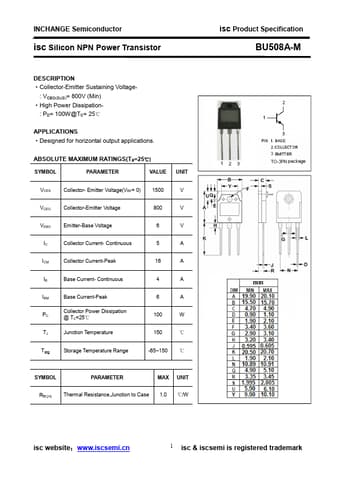

Preview of BU508A-M PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU508A-M
Manufacturer
Inchange Semiconductor
File Size
200.29 KB
Datasheet
BU508A-M-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
