AOD66406 N-Channel MOSFET

AOD66406 Description

isc N-Channel MOSFET Transistor AOD66406 .
Designed for use in switch mode power supplies and general purpose applications.

AOD66406 Features

* Drain Current
* ID= 60A@ TC=25℃
* Drain Source Voltage- : VDSS=40V(Min)
* Static Drain-Source On-Resistance : RDS(on) =6.1mΩ(Max)
* 100% avalanche tested

AOD66406 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 40 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 60 A IDM Drain Current-Single Pluse 150 A PD Total Dissipation @TC=25℃ 52 W TJ Max. Operating Junction Temperatu

📥 Download Datasheet

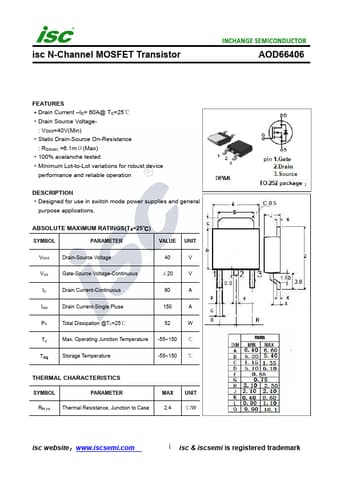

Preview of AOD66406 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AOD66406
Manufacturer
INCHANGE
File Size
260.68 KB
Datasheet
AOD66406-INCHANGE.pdf
Description
N-Channel MOSFET
