AOD409 P-Channel MOSFET

AOD409 Description

isc P-Channel MOSFET Transistor *.

AOD409 Features

* With TO-252( DPAK ) packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor AOD409
* APPLICAT

AOD409 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage -60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 -26 -18 -60 PD Total Dissipation 60 Tj Opera

📥 Download Datasheet

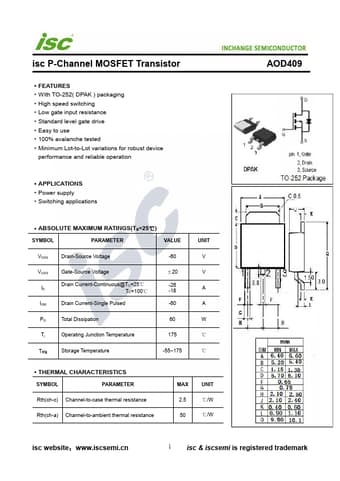

Preview of AOD409 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AOD409
Manufacturer
INCHANGE
File Size
203.47 KB
Datasheet
AOD409-INCHANGE.pdf
Description
P-Channel MOSFET
