2SD2162 - NPN Transistor

The 2SD2162 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

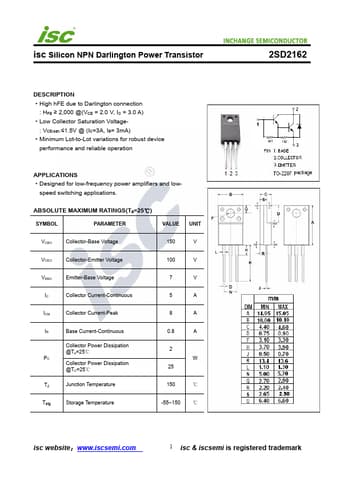

Official preview page of the 2SD2162 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD2162
Manufacturer INCHANGE
File Size 224.94 KB
Description NPN Transistor
Datasheet download datasheet 2SD2162-INCHANGE.pdf
Additional preview pages of the 2SD2162 datasheet.

2SD2162 Product details

Description

High hFE due to Darlington connection : HFE ≥ 2,000 @(VCE = 2.0 V, IC = 3.0 A) Low Collector Saturation Voltage- : VCE(sat) ≤1.5V @ (IC=3A, IB= 3mA) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low-frequency power amplifiers and low- speed switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 100 V VEBO
