2SD211 - NPN Transistor

Description

Excellent Safe Operating Area Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 40V(Min.) Low Collector Saturation Voltage High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high power ampli

📥 Download Datasheet

📁 Similar Datasheet

  • 2SD211 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD2110 - Power Transistor (Inchange Semiconductor)
  • 2SD2111 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SD2112 - Power Transistor (Inchange Semiconductor)
  • 2SD2113 - Power Transistor (Inchange Semiconductor)
  • 2SD2114 - NPN Transistor (JCST)
  • 2SD2114 - NPN Transistor (SeCoS)
  • 2SD2114 - Silicon Epitaxial Planar Transistor (GME)
  • 2SD2114K - High-current Gain Medium Power Transistor (Rohm)
  • 2SD2114K - Power Transistor (Kexin)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

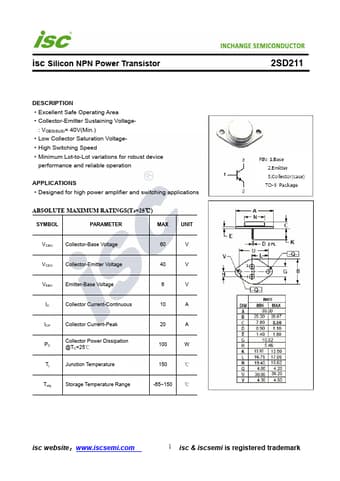

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD211 DESCRIPTION ·Excellent Safe Operating Area ·Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 40V(Min.) ·Low Collector Saturation Voltage·High Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for high power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 40 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 10 A ICP Collector Current-Peak PC Collector Power Dissipation @TC=25℃ Tj Junction Temperature 20 A 100 W 150 ℃ Tstg Storage Temperature Range -65~150 ℃ isc website：www.iscsemi.
