2SD1985 - NPN Transistor

The 2SD1985 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

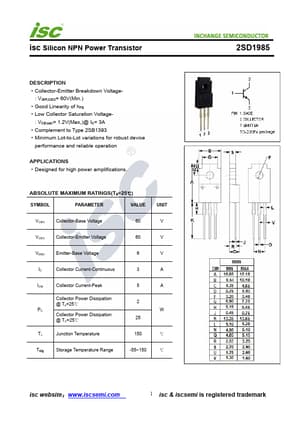

Official preview page of the 2SD1985 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD1985
Manufacturer INCHANGE
File Size 212.30 KB
Description NPN Transistor
Datasheet download datasheet 2SD1985-INCHANGE.pdf
Additional preview pages of the 2SD1985 datasheet.

2SD1985 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min.) Good Linearity of hFE Low Collector Saturation Voltage- : VCE(sat)= 1.2V(Max,)@ IC= 3A Complement to Type 2SB1393 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high power amplifications.
