2SD1982 - NPN Transistor

The 2SD1982 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

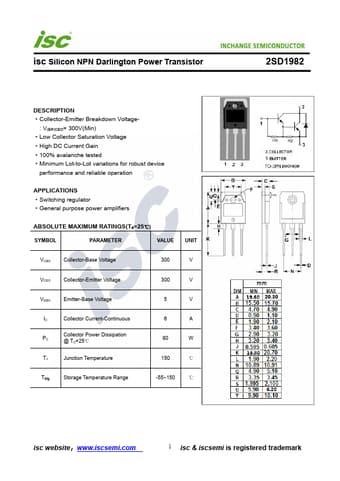

Official preview page of the 2SD1982 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD1982
Manufacturer INCHANGE
File Size 185.08 KB
Description NPN Transistor
Datasheet download datasheet 2SD1982-INCHANGE.pdf
Additional preview pages of the 2SD1982 datasheet.

2SD1982 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 300V(Min) Low Collector Saturation Voltage High DC Current Gain 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulator General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 300 V VEBO Emitter-Base Voltage 5 V
