IDTQS3L383 - QUICKSWITCH PRODUCTS HIGH-SPEED LOW POWER 10-BIT BUS EXCHANGE SWITCH

IDT

📥 Download Datasheet

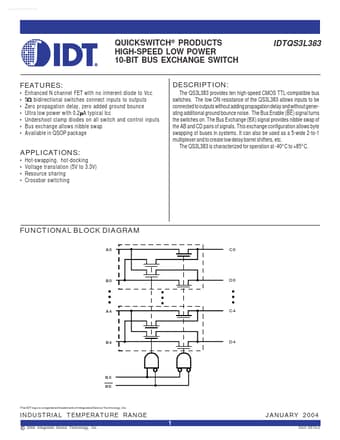

IDTQS3L383 Datasheet Preview — Preview of IDTQS3L383 PDF

Datasheet Details

Part number	IDTQS3L383
Manufacturer	IDT
File Size	72.10 KB
Description	QUICKSWITCH PRODUCTS HIGH-SPEED LOW POWER 10-BIT BUS EXCHANGE SWITCH
Datasheet	IDTQS3L383_IDT.pdf

IDTQS3L383 Product details

Description

Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Zero propagation delay, zero added ground bounce Ultra low power with 0.2µ A typical Icc Undershoot clamp diodes on all switch and control inputs Bus exchange allows nibble swap Available in QSOP package APPLICATIONS: The QS3L383 provides ten high-speed CMOS TTL-compatible bus switches.

Features

IDTQS3L383.
