IDT7M824S - 1M Registered / Buffered / Latched CMOS Static RAM Module

Datasheet Details

Part number	IDT7M824S
Manufacturer	IDT
File Size	166.85 KB
Description	1M Registered / Buffered / Latched CMOS Static RAM Module

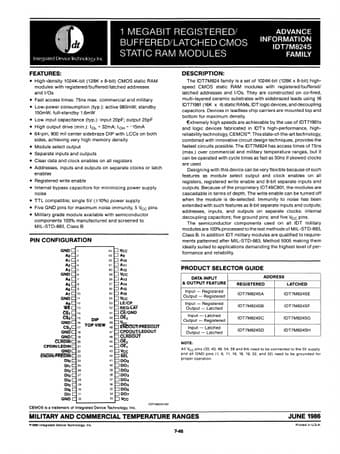

Datasheet	IDT7M824S-IDT.pdf

High-density 1024K-bit (128K x 8-bit) CMOS static RAM modules with registered/buffered/latched addresses and I/Os.
Fast access times: 75ns max. commercial and military.
Low-power consumption (typ. ): active 980mW; standby 150mW; full-standby 1.6mW.
Low input capacitance (typ. ): input 20pF; output 25pF.
High output drive (min. ): IOL =32mA; IOH =-15mA.
64-pin, 900 mil center sidebraze DIP with LCCs on both sides, achieving very high memory den.
