DAC1201D125 Dual 12-bit DAC

DAC1201D125 Description

DAC1201D125 Dual 12-bit DAC, up to 125 Msps Rev.03 * 2 July 2012 Product data sheet 1.General .
The DAC1201D125 is a dual-port, high-speed, 2-channel CMOS Digital-to-Analog Converter (DAC), optimized for high dynamic performance with low power di.

DAC1201D125 Features

* Dual 12-bit resolution
* 125 Msps update rate
* Single 3.3 V supply
* Dual-port or Interleaved data modes
* 1.8 V, 3.3 V and 5 V compatible digital inputs
* Internal and external reference
* 2 mA to 20 mA full-scale output current
* Typical 185 mW power dissipatio

DAC1201D125 Applications

* Separate write inputs allow data to be written to the two DAC ports independently of one another. Two separate clocks control the update rate of each DAC port. The DAC1201D125 can interface two separate data ports or one single interleaved high-speed data port. In Interleaved mode, the input data s

📥 Download Datasheet

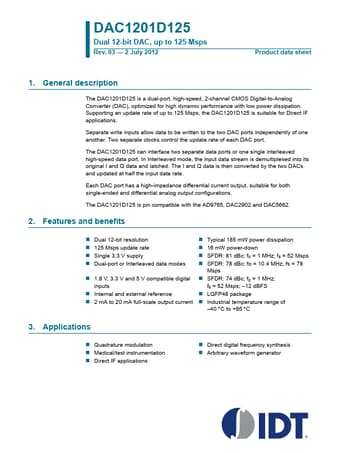

Preview of DAC1201D125 PDF
