DAC1203D160 Dual 12-bit DAC

DAC1203D160 Description

DAC1203D160 Dual 12 bits DAC, up to 160 MHz, 2 x interpolating Rev.03 * 2 July 2012 Product data sheet 1.General .
The DAC1203D160 is optimized to reduce architecture complexity and overall system cost.

DAC1203D160 Features

* Dual 12-bit resolution
* Spurious Free Dynamic Range (SFDR) = 80 dBc at 2.5 MHz
* Input data rate up to 80 MHz
* 2  interpolation filter
* Output data rate up to 160 MHz
* Single 3.3 V power supply
* Low noise capacitor free integrated PLL
* Low power dissipation

📥 Download Datasheet

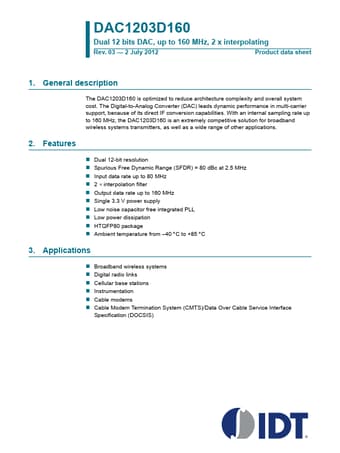

Preview of DAC1203D160 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC1203D160
Manufacturer
IDT
File Size
433.20 KB
Datasheet
DAC1203D160-IDT.pdf
Description
Dual 12-bit DAC
