DAC1208 - 12-Bit/ uP Compatible/ Double-Buffered D to A Converters

Download the DAC1208 datasheet PDF. This datasheet also covers the DAC variant, as both devices belong to the same 12-bit/ up compatible/ double-buffered d to a converters family and are provided as variant models within a single manufacturer datasheet.

Description

The DAC1208 and the DAC1230 series are 12-bit multiplying D to A converters designed to interface directly with a wide variety of microprocessors (8080 8048 8085 Z-80 etc ) Double buffering input registers and associated control lines allow these DACs to appear as a two-byte ‘‘stack’’ in the system’

Features

  • Y Y Y Y Y Y Y Y Linearity specified with zero and full-scale adjust only Direct interface to all popular microprocessors Double-buffered single-buffered or flow through digital data inputs Logic inputs which meet TTL voltage level specs (1 4V logic threshold) Works with g 10V reference full 4-quadrant multiplication Operates stand-alone (without mP) if desired All parts guaranteed 12-bit monotonic DAC1230 series is pin compatible with the DAC0830 series 8-bit MICRO-DACs Key Specifications Y.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DAC-1208.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DAC1200KP-V Integrated Circuit 12-Bit Resolution Digital to Analog Converter Burr-Brown
DAC1201D125 Dual 12-bit DAC IDT
DAC1201D125 Dual 12-bit DAC NXP
DAC1201KP-V 12-Bit Resolution Digital to Analog Converter Burr-Brown
DAC1203D160 Dual 12-bit DAC IDT

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
DAC1200 (DAC1200 / DAC1201) 12-Bit Digital to Analog Converters
DAC1201 (DAC1200 / DAC1201) 12-Bit Digital to Analog Converters
DAC1209 Double-Buffered D-to-A Converters
DAC1210 12-Bit/ uP Compatible/ Double-Buffered D to A Converters
DAC1218 12-Bit Binary Multiplying D/A Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

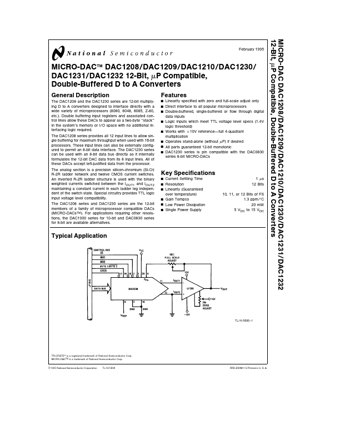

MICRO-DAC DAC1208 DAC1209 DAC1210 DAC1230 DAC1231 DAC1232 12-Bit mP Compatible Double-Buffered D to A Converters February 1995 MICRO-DAC TM DAC1208 DAC1209 DAC1210 DAC1230 DAC1231 DAC1232 12-Bit mP Compatible Double-Buffered D to A Converters General Description The DAC1208 and the DAC1230 series are 12-bit multiplying D to A converters designed to interface directly with a wide variety of microprocessors (8080 8048 8085 Z-80 etc ) Double buffering input registers and associated control lines allow these DACs to appear as a two-byte ‘‘stack’’ in the system’s memory or I O space with no additional interfacing logic required The DAC1208 series provides all 12 input lines to allow single buffering for maximum throughput when used with 16-bit processors These input lines can also be external
