ICS448-16 - Networking Clock Synthesizer

Name: ICS448-16
SKU: ICS448-16-604567

ICS

📥 Download Datasheet

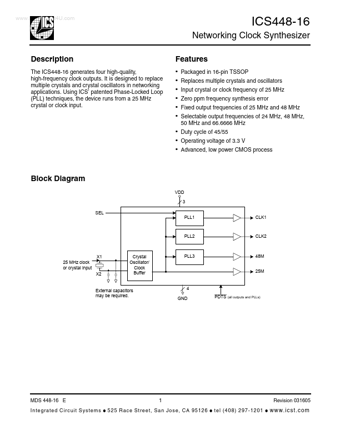

ICS448-16 Datasheet Preview — Preview of ICS448-16 PDF

Datasheet Details

Part number	ICS448-16
Manufacturer	ICS
File Size	149.16 KB
Description	Networking Clock Synthesizer
Datasheet	ICS448-16_ICS.pdf

ICS448-16 Product details

Description

The ICS448-16 generates four high-quality, high-frequency clock outputs. Duty cycle of 45/55 Operating voltage of 3.3 V Advanced, low power CMOS process Block Diagram VDD 3 SEL PLL1 CLK1 PLL2 CLK2 X1 25 MHz clock or crystal input X2 Crystal Oscillator/ Clock

Features

Packaged in 16-pin TSSOP Replaces multiple crystals and oscillators Input crystal or clock frequency of 25 MHz Zero ppm frequency synthesis error Fixed output frequencies of 25 MHz and 48 MHz Selectable output frequencies of 24 MHz, 48 MHz, 50 MHz and 66.6666 MHz.
