ICS-40300 High SPL Analog Microphone

ICS-40300 Description

ICS-40300 High SPL Analog Microphone with Extended Low Frequency Response GENERAL .
The ICS-40300. is a low-noise, high SPL MEMS microphone with extended low frequency response.

ICS-40300 Features

* 4.72 × 3.76 × 3.5 mm Surface-Mount Package
* Extended Frequency Response from 6 Hz to 20 kHz
* 130 dB SPL Acoustic Overload Point
* Sensitivity of
* 45 dBV
* ±2 dB Sensitivity Tolerance
* Omnidirectional Response
* High SNR of 63 dBA

ICS-40300 Applications

* requiring precise phase matching. The ICS-40300 is pin compatible with the INMP401 and INMP411 microphones, providing an easy upgrade path. The ICS-40300 has a linear response up to 130 dB SPL. It offers low frequency extension down to 6 Hz, resulting in excellent phase characteristics in the audio

📥 Download Datasheet

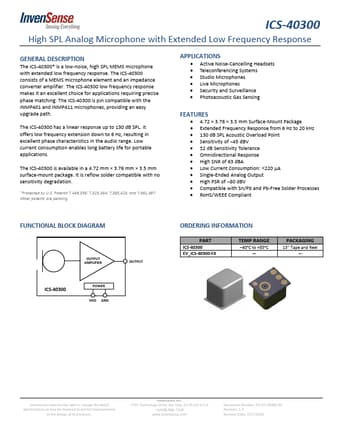

Preview of ICS-40300 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS-40300
Manufacturer
InvenSense
File Size
376.07 KB
Datasheet
ICS-40300-InvenSense.pdf
Description
High SPL Analog Microphone
