ICS44002I-01 - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER

Name: ICS44002I-01
SKU: ICS44002I-01-604565

ICS

📥 Download Datasheet

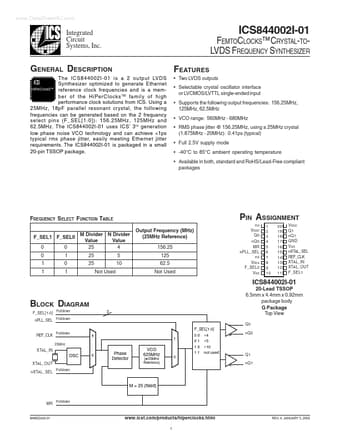

ICS44002I-01 Datasheet Preview — Preview of ICS44002I-01 PDF

Datasheet Details

Part number	ICS44002I-01
Manufacturer	ICS
File Size	186.76 KB
Description	CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER
Datasheet	ICS44002I-01_ICS.pdf

ICS44002I-01 Product details

Description

The ICS844002I-01 is a 2 output LVDS Synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocks T M family of high performance clock solutions from ICS.

Features

Two LVDS outputs.
Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input.
Supports the following output frequencies: 156.25MHz, 125MHz, 62.5MHz.
VCO range: 560MHz - 680MHz.
RMS phase jitter @ 156.25MHz, using a 25MHz crystal (1.875MHz - 20MHz): 0.41ps (typical).
Full 2.5V supply mode.
-40°C to 85°C ambient operating temperature.
Available in both, standard and RoHS/Lead-Free compliant packages.
