ICM7523, ICM7543 12/10/8-Bit Low Power Quad DACs

ICM7523 Description

www.DataSheet4U.com ICM7563/7543/7523 ICmic IC MICROSYSTEMS 12/10/8-Bit Low Power Quad DACs With Serial Interface and Voltage Output .
(10 Lead MSOP) Pin 1 2 3 4 5 6 7 8 9 10 Name CS SCK VDD GND SDI REFIN VOA VOB VOC VOD I/O I I I I I I O O O O Active Low Chip Select (CMOS) Serial.

ICM7523 Features

* 12/10/8-Bit Quad DAC in 10 Lead MSOP Package
* Ultra-Low Power Consumption
* Guaranteed Monotonic
* Wide Voltage Swing Output Buffer
* Three-wire SPI/QSP and Microwire Interface Compatible
* Three Software-Selectable Power-Down Output Impedances (1 K

ICM7523 Applications

* Industrial Process Control
* Digital Gain and Offset Adjustment BLOCK DIAGRAM OVERVIEW The ICM7563, ICM7543 and ICM7523 are 12-Bit, 10-Bit and 8-Bit Voltage Output, Low Power, Quad DACs respectively, with guaranteed monotonic behavior. These DACs are available in 10 Lead MSOP pack

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ICM7523, ICM7543. Please refer to the document for exact specifications by model.

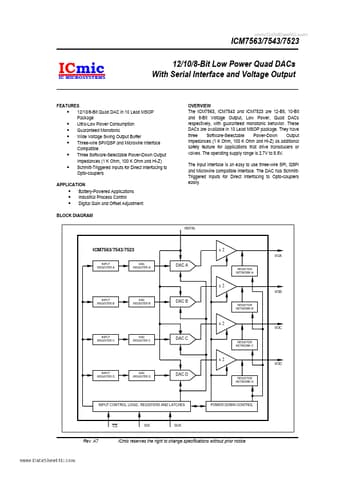

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICM7523, ICM7543
Manufacturer
IC MICROSYSTEMS
File Size
220.19 KB
Datasheet
ICM7543_ICMICROSYSTEMS.pdf
Description
12/10/8-Bit Low Power Quad DACs
Note
This datasheet PDF includes multiple part numbers: ICM7523, ICM7543.
Please refer to the document for exact specifications by model.
