ICM7556, ICM7555 General-Purpose Timers

ICM7556 Description

General-Purpose Timers Design Resources Tools and Models Support Click here to ask an associate for production status of specific part numbers.I.
The Maxim ICM7555 and ICM7556 are respectively single and dual general-purpose RC timers capable of generating accurate time delays or frequencies.

ICM7556 Features

* include low THRESHOLD, TRIGGER, and RESET currents, a wide operating supply voltage range, and improved performance at high frequencies. These CMOS low-power devices offer significant performance advantages over the standard 555 and 556 bipolar timers. Low-power consumption, combined with the virtu

ICM7556 Applications

* Applications
* Pulse Generator
* Precision Timing
* Time Delay Generation
* Pulse-Width Modulation
* Pulse Position Modulation
* Sequential Timing

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ICM7556, ICM7555. Please refer to the document for exact specifications by model.

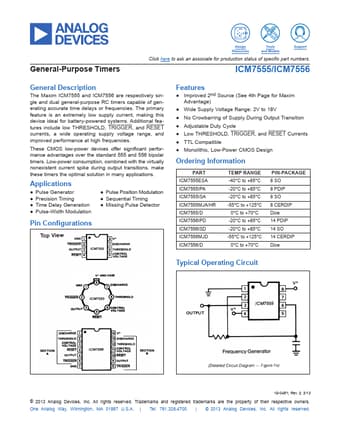

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICM7556, ICM7555
Manufacturer
Analog Devices ↗
File Size
2.02 MB
Datasheet
ICM7555-AnalogDevices.pdf
Description
General-Purpose Timers
Note
This datasheet PDF includes multiple part numbers: ICM7556, ICM7555.
Please refer to the document for exact specifications by model.
