ICM7521, ICM7541 12/10/8-Bit Low Power Single DAC

ICM7521 Description

www.DataSheet4U.com ICM7561/7541/7521 ICmic IC MICROSYSTEMS 12/10/8-Bit Low Power Single DAC With Serial Interface and Voltage Output .
(8 Lead MSOP) Pin 1 2 3 4 5 6 7 8 Name VO NC CS SCK SDI REFIN GND VDD I/O O I I I I I I DAC Output Voltage No Connection Active Low Chip Select (CM.

ICM7521 Features

* 12/10/8-Bit Single DAC in 08 Lead MSOP Package
* Ultra-Low Power Consumption
* Guaranteed Monotonic
* Wide Voltage Output Swing Buffer
* Three-wire SPI/QSP and Microwire Interface Compatible
* Three Software-Selectable Power-Down Output Impedances (1

ICM7521 Applications

* Industrial Process Control

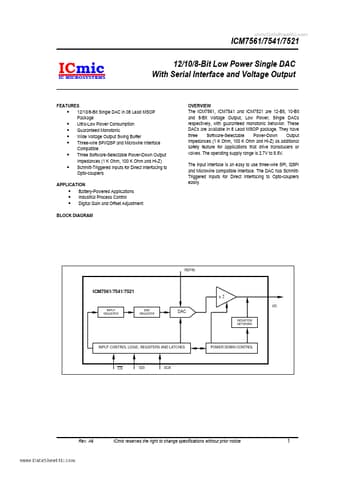

* Digital Gain and Offset Adjustment BLOCK DIAGRAM OVERVIEW The ICM7561, ICM7541 and ICM7521 are 12-Bit, 10-Bit and 8-Bit Voltage Output, Low Power, Single DACs respectively, with guaranteed monotonic behavior. These DACs are available in 8 Lead MSOP pac

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ICM7521, ICM7541. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICM7521, ICM7541
Manufacturer
IC MICROSYSTEMS
File Size
204.95 KB
Datasheet
ICM7541_ICMICROSYSTEMS.pdf
Description
12/10/8-Bit Low Power Single DAC
Note
This datasheet PDF includes multiple part numbers: ICM7521, ICM7541.
Please refer to the document for exact specifications by model.
