H9CKNNN8GTMPLR - 8Gb LPDDR3

Description

and is subject to change without notice.

SK hynix does not assume any responsibility for use of circuits described.

No patent licenses are implied.

Features

  • [ FBGA ].
  • Operation Temperature - (-30)oC ~ 105oC.
  • Package - 168-ball FBGA - 12.0x12.0mm2, 0.70t, 0.50mm pitch - Lead & Halogen Free [ LPDDR3 ].
  • VDD1 = 1.8V (1.7V to 1.95V).
  • VDD2, VDDCA and VDDQ = 1.2V (1.14V to 1.30).
  • HSUL_12 interface (High Speed Unterminated Logic 1.2V).
  • Double data rate architecture for command, address and data Bus; - all control and address except CS_n, CKE latched at both rising and falling edge of the clock - CS_n, CKE latched at rising edg.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by SK Hynix

Part Number Description
H9CKNNN8GTMPLR-NTH 8Gb LPDDR3
H9CKNNN8GTMPLR-NUH 8Gb LPDDR3
H9CCNNN8JTALAR 8Gb LPDDR3

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

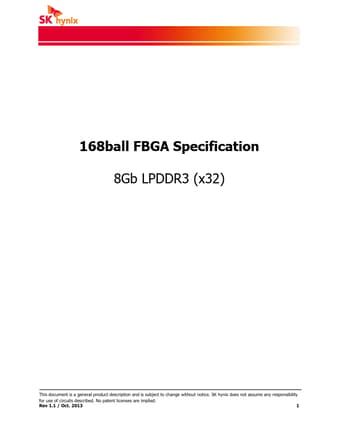

168ball FBGA Specification 8Gb LPDDR3 (x32) This document is a general product description and is subject to change without notice. SK hynix does not assume any responsibility for use of circuits described. No patent licenses are implied. Rev 1.1 / Oct. 2013 1 H9CKNNN8GTMPLR LPDDR3-S8B 8Gb(x32) Document Title FBGA 8Gb (x32) LPDDR3 Revision History Revision No. 0.1 0.2 0.3 0.4 1.0 1.1 - Initial Draft - Corrected tWLS and tWLH in AC Timing Parameters - Corrected a typo - Added DRAM speed 1866Mbps to ORDERING INFORMATION Final Version - Updated IDD specification and Input/Output Capacitance - Added DRAM speed 1866Mbps History Draft Date May. 2013 Jun. 2013 Jun. 2013 Jul. 2013 Aug. 2013 Oct. 2013 Remark Preliminary Preliminary Preliminary Preliminary Rev 1.1 / Oct.
