HYM71V16635BT8 - PC133 SDRAM Unbuffered DIMM

Hynix Semiconductor

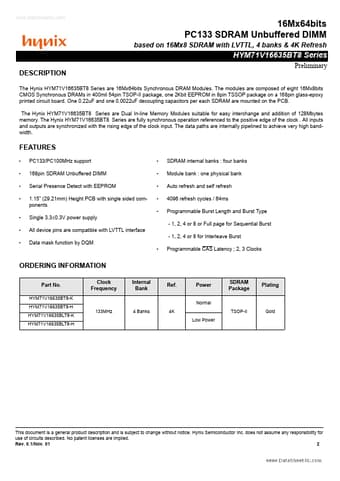

HYM71V16635BT8 Datasheet Preview — Preview of HYM71V16635BT8 PDF

Datasheet Details

Part number	HYM71V16635BT8
Manufacturer	Hynix Semiconductor
File Size	374.13 KB
Description	PC133 SDRAM Unbuffered DIMM
Datasheet	HYM71V16635BT8_HynixSemiconductor.pdf

HYM71V16635BT8 Product details

Description

Preliminary The Hynix HYM71V16635BT8 Series are 16Mx64bits Synchronous DRAM Modules.The modules are composed of eight 16Mx8bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 168pin glass-epoxy printed circuit board.One 0.22uF and one 0.0022uF decoupling capacitors per each SDRAM are mounted on the PCB.The Hynix HYM71V16635BT8 Series are Dual In-line Memory Modules suitable for easy interchange and addition of 128Mbytes memory.The Hynix H

Features

PC133/PC100MHz support 168pin SDRAM Unbuffered DIMM Serial Presence Detect with EEPROM 1.15” (29.21mm) Height PCB with single sided components Single 3.3±0.3V power supply All device pins are compatible with LVTTL interface - 1, 2, 4 or 8 for Interleave Burst.
Data mask function by DQM.
Programmable CAS Latency ; 2, 3 Clocks.
SDRAM internal banks : four banks Module bank : one physical bank.
